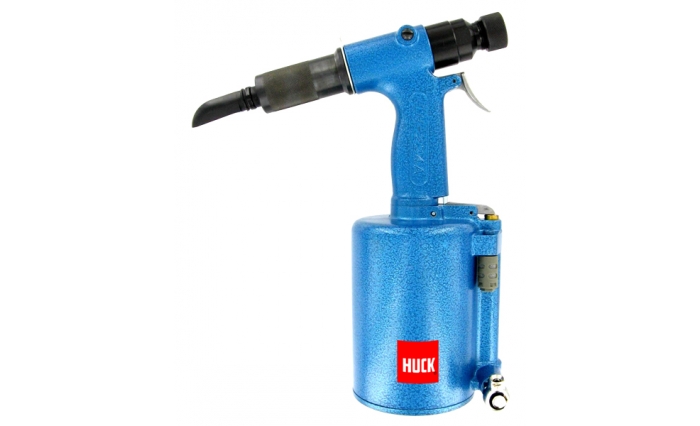

HUCK LH-224 PNEUDRAULIC INSTALLATION TOOL
Card No. 1896.10
HUCK LH 224 PNEUDRAULIC INSTALLATION TOOL
The LH224 is the workhorse of the HUCK tools in Australia, a lightweight, simple yet solid design makes this one of the most versatile high-speed production tools we stock, capable of installing most HUCK fasteners and other rivets up to 1/4” diameter.
Nose Assembly Selection Table
Type of Fastener Installed |
Code |
Part Number |
|
3/16" Magna-Lok, Magna-Bulb |
1897.26 |
99-3300 |
|
1/4" Magna-Lok, Magna-Bulb |
1897.16 |
99-3301 |
|
1/4" Heavy Duty, Magna-Lok, Magna-Bulb |
1897.11 |
99-3305 |
|
3/16" Magna-Grip |
1897.19 |
99-3201 |
|
1/4" Magna-Grip |
1897.18 |
99-3204 |
Weight: 2.5kg
Stroke: 22mm
Capacity: 1860 kgs
Power: 90psi (6 kp/cm2)
Speed: 30 Fasteners/Min
