2 & 3 Way Rod Locks

Rod locks are used to extend the locking mechanism to the edges of the material it is fitted to. This rod lock is a 2 point locking system when fitted with a handle, and can be converted to a 3 point locking system through the use of a Drop T Lock.

This lock is fitted with a square hole, and comes with 2 guides for each rod.

We also sell a longer rod lock in this style (1084.06)

Features

• Zinc Plated Steel Finish
• Mounting Holes (Fasteners Sold Separately)
• Two Guides Included
• Handle Fittings Available

Commonly used in tool boxes, motor homes, camper trailers, utes and service vehicles. Also used for mining and marine applications.

Rod locks are used to extend the locking mechanism to the edges of the material it is fitted to. This rod lock is a 2 point locking system when fitted with a handle, and can be converted to a 3 point locking system through the use of a Drop T Lock.

This lock is fitted with a square hole, and comes with 2 guides for each rod.

We also sell a shorter rod lock in this style (1084.05)

Features

• Zinc Plated Steel Finish
• Mounting Holes (Fasteners Sold Separately)
• Two Guides Included
• Handle Fittings Available

Commonly used in tool boxes, motor homes, camper trailers, utes and service vehicles. Also used for mining and marine applications.

Rod locks are used to extend the locking mechanism to the edges of the material it is fitted to. This rod lock is a 3 point locking system, and can be fitted with a handle using the 8mm square hole. It is a right hand lock.

This lock is fitted with a square hole, and comes with 2 guides for each rod.

We also sell a left hand rod lock in this style (1084.43)

Features

• Zinc Plated Steel Finish
• Right Hand Lock
• Mounting Holes (Fasteners Sold Separately)
• Two Guides And Tongue Catch Included
• Rods Included
• Handle Fittings Available

Commonly used in tool boxes, motor homes, camper trailers, utes and service vehicles. Also used for mining and marine applications.

Rod locks are used to extend the locking mechanism to the edges of the material it is fitted to. This rod lock is a 3 point locking system, and can be fitted with a handle using the 8mm square hole. It is a left hand lock.

This lock is fitted with a square hole, and comes with 2 guides for each rod.

We also sell a right hand rod lock in this style (1084.42)

Features

• Zinc Plated Steel Finish
• Left Hand Lock
• Mounting Holes (Fasteners Sold Separately)
• Two Guides And Tongue Catch Included
• Rods Included
• Handle Fittings Available

Commonly used in tool boxes, motor homes, camper trailers, utes and service vehicles. Also used for mining and marine applications.

Rod locks are used to extend the locking mechanism to the edges of the material it is fitted to. This rod is to be used in conjunction with a handle, drop t lock, or other accessory. The rollers on this rod are to allow for smooth movement when opening and closing a lock. It is also used for thinner materials when mounting brackets may not be practical to install.

We also sell a shorter rod lock in this style (1086.18)

Features

• Zinc Plated Steel Finish
• Roller End
• Guides Sold Separately (1071.44)
• Adaptor End Sold Separately (1086.10)
• Handles/Drop T Locks Available To Suit

Commonly used in tool boxes, camper trailers, utes and service vehicles. Also used for mining and marine applications.

These Zinc Plated Steel Rods and Guides are commonly used in conjunction with a variety of handles and Drop T Locks, and are used commonly in conjunction with Central Locking Drop T Locks (1084.94 and 1084.95). These rods are fitted to this Drop T Lock to make a 3 point locking system.

Features

• Zinc Plated Steel Finish
• Holed Rod
• Rods Sold Individually
• Guides Sold Separately

Suitable Drop "T" Locks for this product are;

Commonly used in applications on trucks, utes, camper trailers, service vehicles and tool boxes. Also used for mining, vehicle body manufacture, transport, marine, defence and service vehicles.

The 3 point cam is designed for use with a handle, if a 1 point locking system is desired, and with a handle and rods if a 3 point locking system is desired. The 3 point cam is designed for use with holed rods, and for handles using a square drive.

Features

• Zinc Plated Steel Finish
• Circlips and Grub Screw Included
• Mounting Studs
• Suits Holed Rods

Commonly used in applications on motor homes, utes, tray backs, camper trailers and tool boxes. Also used for mining, vehicle body manufacture, transport, marine and defence vehicles.

The 3 way cam is designed for use with a handle, if a 1 point locking system is desired, and with a handle and rods if a 3 point locking system is desired. The 3 point cam is designed for use with plain ended rods, and for handles using a square drive.

Features

• Zinc Plated Steel Finish
• Circlips, Rod Adaptors and Grub Screw Included
• Suits Plain Ended Rods

Commonly used in applications on motor homes, utes, tray backs, camper trailers and tool boxes. Also used for mining, vehicle body manufacture, transport, marine and defence vehicles.

The Adaptor End is for use with a studded lock system to allow for the attachment of plain ended rods. This adaptor end is for use with rods 1086.18 and 1086.20.

Features

• Zinc Plated Steel Finish
• Suits Rods 1086.18 and 1086.20

Rod Guides are used for keeping rods aligned with the receptacle holes they place into, and offer support for self weight of rods. This guide is for use with rods 1086.18 and 1086.20.

Features

• Black Polyamide Finish
• Suits Rods 1086.18 and 1086.20

The Roller End is for use with an 8mm round rod with eye. The roller allows the rod to move smoothly when opening and closing a lock.

Features

• Zinc Plated Steel Finish
• Nylon Wheel
• Suits 2 Way Rods

This pin is for use with an 8mm rod with eye (1086.12). The pin allows for a Drop T Lock or a handle with an eye attachment can be used with eyed rods.

Features

• Zinc Plated Steel Finish
• R Clip Included
• Suits Eyed 2 Way Rods

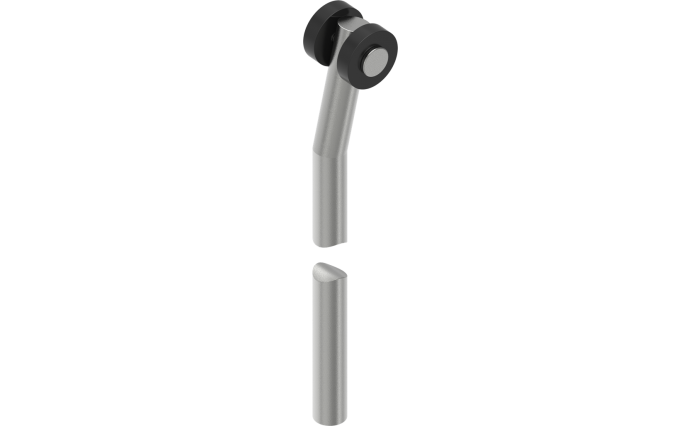

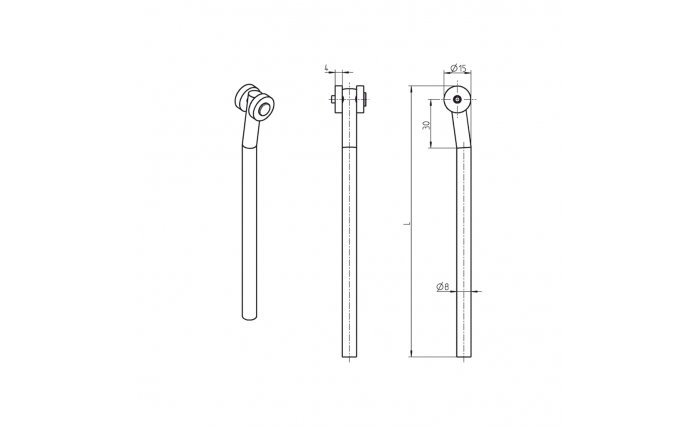

Rod locks are used to extend the locking mechanism to the edges of the material it is fitted to. This rod is to be used in conjunction with a handle, Drop T Lock, or other accessory. The rollers on this rod are to allow for smooth movement when opening and closing a lock. It is also used for thinner materials when mounting brackets may not be practical to install.

We also sell a longer rod in this style (1086.20)

Features

• Zinc Plated Steel Finish
• Roller End
• Guides Sold Separately (1071.44)
• Adaptor End Sold Separately (1086.10)
• Handles/Drop T Locks Available To Suit

Commonly used in tool boxes, camper trailers, utes and service vehicles. Also used for mining and marine applications.

This 2 way rod adapter is designed for use with a swing handle and handles using a square drive.

Utilising studs it is intended for use with female ended rods.

Features

• Zinc Plated Steel Finish
• Circlips, Rod Adaptors
• Suits Female Ended Rods
• 8mm Square Drive
• 4.4mm Mounting Holes

Commonly used in applications on motor homes, utes, tray backs, camper trailers and tool boxes.

Also used for mining, vehicle body manufacture, transport, marine and defence vehicles.
