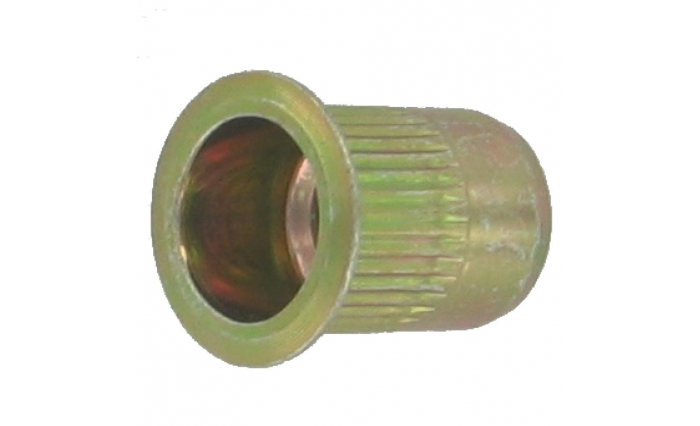

Marson Steel Rivet Nut
Marson Steel Rivet Nut

Marson Steel Rivet Nut

Steel Rivet Nut

Large Flange

Yellow Zinc Dichromate Steel

$0.43 - $1.09 (GST Inc) $0.39 - $0.99 (GST Ex) See Details Select Size Options

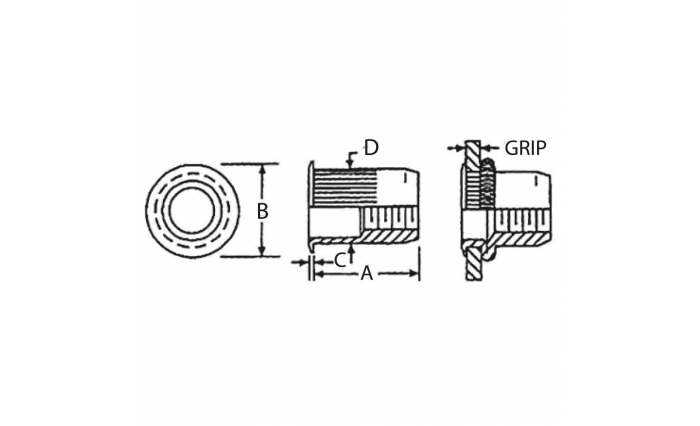

Sizing Options

Card No.
PartNo
Thread
Min Grip
Max
Hole
A
B
C
D
GST Inc.
GST Ex.
Card No.
6550.00
PartNo
MLR57360
Thread
M4 x 0.7
Min Grip
0.5
Max
2.0
Hole
6.75
A
10.9
B
9.9
C
0.71
D
6.7
$0.43 (GST Inc.)
$0.39 (GST Ex.)
Card No.
6554.00
PartNo
MLR57385
Thread
M5 x 0.8
Min Grip
0.5
Max
3.30
Hole
7.6
A
12.3
B
10.5
C
0.71
D
7.5
$0.49 (GST Inc.)
$0.45 (GST Ex.)
Card No.
6556.00
PartNo
MLR57384
Thread
M5 x 0.8
Min Grip
3.30
Max
5.71
Hole
7.6
A
15.0
B
10.5
C
0.71
D
7.5
$0.47 (GST Inc.)
$0.43 (GST Ex.)
Card No.
6558.00
PartNo
MLR57386
Thread
M6 x 1.0
Min Grip
0.7
Max
4.2
Hole
10
A
14.9
B
12.7
C
0.71
D
9.9
$0.60 (GST Inc.)
$0.55 (GST Ex.)
Card No.
6560.00
PartNo
MLR57387
Thread
M6 x 1.0
Min Grip
4.2
Max
6.6
Hole
10
A
17.5
B
12.7
C
0.71
D
9.9
$0.66 (GST Inc.)
$0.60 (GST Ex.)
Card No.
6562.00
PartNo
MLR57388
Thread
M8 x 1.25
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
17.4
C
0.81
D
13.5
$1.03 (GST Inc.)
$0.94 (GST Ex.)
Card No.
6564.00
PartNo
MLR57389
Thread
M8 x 1.25
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
17.4
C
0.81
D
13.5
$1.09 (GST Inc.)
$0.99 (GST Ex.)
Card No.
6566.00
PartNo
MLR57390
Thread
M10 x 1.5
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
17.4
C
0.81
D
13.5
$0.97 (GST Inc.)
$0.88 (GST Ex.)
Card No.
6568.00
PartNo
MLR57391
Thread
M10 x 1.5
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
17.4
C
0.81
D
13.5
$1.02 (GST Inc.)
$0.93 (GST Ex.)

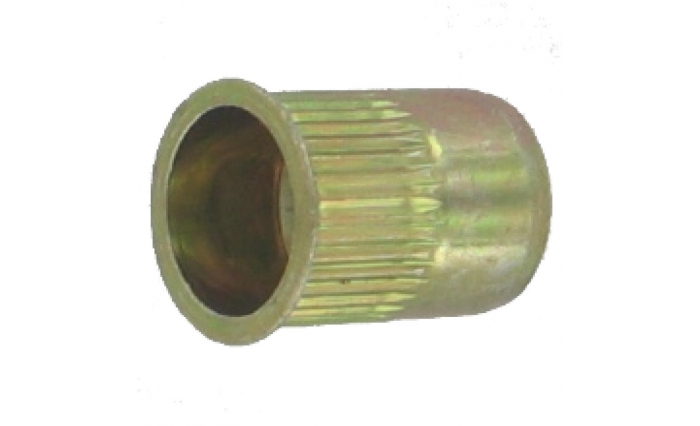

Marson Steel Rivet Nut
Marson Steel Rivet Nut

Marson Steel Rivet Nut

Steel Rivet Nut

Small Flange

Yellow Zinc Dichromate Steel

$0.21 - $1.03 (GST Inc) $0.19 - $0.94 (GST Ex) See Details Select Size Options

Sizing Options

Card No.
PartNo
Thread
Min Grip
Max
Hole
A
B
C
D
GST Inc.
GST Ex.
Card No.
6510.00
PartNo
MSR56860
Thread
M4 x 0.7
Min Grip
0.5
Max
2.0
Hole
6.75
A
10.9
B
7.87
C
0.71
D
6.7
$0.21 (GST Inc.)
$0.19 (GST Ex.)
Card No.
6512.00
PartNo
MSR56865
Thread
M4 x 0.7
Min Grip
2.0
Max
3.3
Hole
6.76
A
12.3
B
7.87
C
0.71
D
6.7
$0.42 (GST Inc.)
$0.38 (GST Ex.)
Card No.
6514.00
PartNo
MSR56884
Thread
M5 x 0.8
Min Grip
0.5
Max
3.30
Hole
7.6
A
12.3
B
8.64
C
07.1
D
7.5
$0.44 (GST Inc.)
$0.40 (GST Ex.)
Card No.
6516.00
PartNo
MSR56885
Thread
M5 x 0.8
Min Grip
3.30
Max
5.71
Hole
7.6
A
15.0
B
8.64
C
0.71
D
7.5
$0.47 (GST Inc.)
$0.43 (GST Ex.)
Card No.
6518.00
PartNo
MSR56886
Thread
M6 x 1.0
Min Grip
0.7
Max
4.2
Hole
10
A
14.9
B
11.56
C
0.71
D
9.9
$0.90 (GST Inc.)
$0.82 (GST Ex.)
Card No.
6520.00
PartNo
MSR56887
Thread
M6 x 1.0
Min Grip
4.2
Max
6.6
Hole
10
A
17.5
B
11.56
C
0.71
D
9.9
$0.65 (GST Inc.)
$0.59 (GST Ex.)
Card No.
6522.00
PartNo
MSR56888
Thread
M8 x 1.25
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
15.11
C
0.81
D
13.5
$0.97 (GST Inc.)
$0.88 (GST Ex.)
Card No.
6524.00
PartNo
MSR56889
Thread
M8 x 1.25
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
15.11
C
0.81
D
13.5
$1.03 (GST Inc.)
$0.94 (GST Ex.)
Card No.
6526.00
PartNo
MSR56890
Thread
M10 x 1.5
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
15.11
C
0.81
D
13.5
$0.91 (GST Inc.)
$0.83 (GST Ex.)
Card No.
6528.00
PartNo
MSR56891
Thread
M10 x 1.5
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
15.11
C
0.81
D
13.5
$0.99 (GST Inc.)
$0.90 (GST Ex.)
Marson Aluminium Rivet Nut
Marson Aluminium Rivet Nut

Marson Aluminium Rivet Nut

Aluminium Rivet Nut

Large Flange

Aluminium

$0.55 - $1.63 (GST Inc) $0.50 - $1.48 (GST Ex) See Details Select Size Options

Sizing Options

Card No.
PartNo
Thread
Min Grip
Max
Hole
A
B
C
D
GST Inc.
GST Ex.
Card No.
6580.00
PartNo
MLR57660
Thread
M4 x 0.7
Min Grip
0.5
Max
2.0
Hole
6.75
A
10.9
B
7.87
C
0.71
D
6.7
$0.55 (GST Inc.)
$0.50 (GST Ex.)
Card No.
6582.00
PartNo
MLR57665
Thread
M4 x 0.7
Min Grip
2.0
Max
3.3
Hole
6.76
A
12.3
B
7.87
C
0.71
D
6.7
$0.61 (GST Inc.)
$0.55 (GST Ex.)
Card No.
6584.00
PartNo
MLR57684
Thread
M5 x 0.8
Min Grip
0.5
Max
2.0
Hole
7.6
A
12.3
B
8.64
C
0.71
D
7.5
$0.60 (GST Inc.)
$0.55 (GST Ex.)
Card No.
6586.00
PartNo
MLR57685
Thread
M5 x 0.8
Min Grip
2.0
Max
3.3
Hole
7.6
A
15.0
B
8.64
C
0.71
D
7.5
$0.68 (GST Inc.)
$0.62 (GST Ex.)
Card No.
6588.00
PartNo
MLR57686
Thread
M6 x 1.0
Min Grip
0.7
Max
4.2
Hole
10.00
A
14.9
B
11.56
C
0.71
D
9.9
$0.79 (GST Inc.)
$0.72 (GST Ex.)
Card No.
6590.00
PartNo
MLR57687
Thread
M6 x 1.0
Min Grip
4.2
Max
6.6
Hole
10.00
A
17.5
B
11.56
C
0.71
D
9.9
$0.86 (GST Inc.)
$0.78 (GST Ex.)
Card No.
6592.00
PartNo
MLR57688
Thread
M8 x 1.25
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
15.11
C
0.81
D
13.5
$1.33 (GST Inc.)
$1.21 (GST Ex.)
Card No.
6594.00
PartNo
MLR57689
Thread
M8 x 1.25
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
15.11
C
0.81
D
13.5
$1.63 (GST Inc.)
$1.48 (GST Ex.)
Card No.
6596.00
PartNo
MLR57690
Thread
M10 x 1.5
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
15.11
C
0.81
D
13.5
$1.24 (GST Inc.)
$1.13 (GST Ex.)
Card No.
6598.00
PartNo
MLR57691
Thread
M10 x 1.5
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
15.11
C
0.81
D
13.5
$1.50 (GST Inc.)
$1.36 (GST Ex.)
Stainless Steel Threaded Insert
Stainless Steel Threaded Insert

Stainless Steel Threaded Insert

Stainless Steel Insert

Large Flange

Stainless Steel

$0.70 - $1.80 (GST Inc) $0.64 - $1.64 (GST Ex) See Details Select Size Options

Sizing Options

Card No.
PartNo
Thread
Min Grip
Max
Hole
B
C
A
D
GST Inc.
GST Ex.
Card No.
1882.51
PartNo
ALSS.580.3.3 STAINLESS STEEL
Thread
M5
Min Grip
0.5
Max
3.3
Hole
7.6
B
10.55
C
0.75
A
11.35
D
7.55
$0.70 (GST Inc.)
$0.64 (GST Ex.)
Card No.
1882.52
PartNo
ALSS.610.4.2 STAINLESS STEEL
Thread
M6
Min Grip
0.7
Max
4.2
Hole
10.00
B
12.70
C
0.75
A
14.00
D
9.95
$0.89 (GST Inc.)
$0.81 (GST Ex.)
Card No.
1882.53
PartNo
ALSS.8125.3.8 STAINLESS STEEL
Thread
M8
Min Grip
0.7
Max
3.8
Hole
13.50
B
17.20
C
0.90
A
16.65
D
13.50
$1.30 (GST Inc.)
$1.18 (GST Ex.)
Card No.
1882.54
PartNo
ALSS.1015.3.8 STAINLESS STEEL
Thread
M10
Min Grip
0.7
Max
3.8
Hole
13.50
B
17.40
C
0.90
A
16.65
D
13.50
$1.80 (GST Inc.)
$1.64 (GST Ex.)
AVK AK Series Threaded Insert
AVK AK Series Threaded Insert

AVK AK Series Threaded Insert

AK Series Steel Thread Insert

Low Profile Head

Zinc Dichromate Steel

$0.21 - $1.05 (GST Inc) $0.19 - $0.95 (GST Ex) See Details Select Size Options

Sizing Options

Card No.
PartNo
Thread
Min Grip
Max
Hole
HD
HH
L
D
GST Inc.
GST Ex.
Card No.
1880.12
PartNo
AKS4.1024.130
Thread
3/16" UNC
Min Grip
0.5
Max
3.3
Hole
7.60
HD
8.64
HH
0.48
L
12.07
D
7.52
$0.23 (GST Inc.)
$0.21 (GST Ex.)
Card No.
1880.50
PartNo
AKS4.470.2.0
Thread
M4
Min Grip
0.5
Max
2.0
Hole
6.75
HD
7.87
HH
0.48
L
10.67
D
6.73
$0.21 (GST Inc.)
$0.19 (GST Ex.)
Card No.
1881.50
PartNo
AKS4.470.3.3
Thread
M4
Min Grip
2.0
Max
3.3
Hole
6.75
HD
7.87
HH
0.48
L
11.94
D
6.73
$0.26 (GST Inc.)
$0.24 (GST Ex.)
Card No.
1880.51
PartNo
AKS4.580.3.3
Thread
M5
Min Grip
0.5
Max
3.3
Hole
7.60
HD
8.64
HH
0.48
L
12.07
D
7.52
$0.23 (GST Inc.)
$0.21 (GST Ex.)
Card No.
1881.51
PartNo
AKS4.580.5.7
Thread
M5
Min Grip
3.3
Max
5.7
Hole
7.60
HD
8.64
HH
0.48
L
14.86
D
7.52
$0.30 (GST Inc.)
$0.27 (GST Ex.)
Card No.
1880.52
PartNo
AKS4.610.4.2
Thread
M6
Min Grip
0.7
Max
4.2
Hole
10.00
HD
11.56
HH
0.55
L
14.73
D
9.91
$0.34 (GST Inc.)
$0.31 (GST Ex.)
Card No.
1881.52
PartNo
AKS4.610.6.6
Thread
M6
Min Grip
4.2
Max
6.6
Hole
10.00
HD
11.56
HH
0.55
L
17.27
D
9.91
$0.42 (GST Inc.)
$0.38 (GST Ex.)
Card No.
1880.14
PartNo
AKS4.420.165
Thread
1/4" UNC
Min Grip
0.7
Max
4.2
Hole
10.00
HD
11.56
HH
0.55
L
14.73
D
9.91
$0.34 (GST Inc.)
$0.31 (GST Ex.)
Card No.
1881.14
PartNo
AKS4.420.260
Thread
1/4" UNC
Min Grip
4.2
Max
6.6
Hole
10.00
HD
11.56
HH
0.55
L
17.27
D
9.91
$0.42 (GST Inc.)
$0.38 (GST Ex.)
Card No.
1880.53
PartNo
AKS4.8125.3.8
Thread
M8
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$0.48 (GST Inc.)
$0.44 (GST Ex.)
Card No.
1881.53
PartNo
AKS4.8125.7.9
Thread
M8
Min Grip
3.8
Max
7.9
Hole
13.50
HD
15.11
HH
0.55
L
20.45
D
13.46
$0.59 (GST Inc.)
$0.54 (GST Ex.)
Card No.
1880.16
PartNo
AKS4.518.150
Thread
5/16" UNC
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$0.48 (GST Inc.)
$0.44 (GST Ex.)
Card No.
1880.54
PartNo
AKS4.1015.3.8
Thread
M10
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$0.68 (GST Inc.)
$0.62 (GST Ex.)
Card No.
1881.54
PartNo
AKS4.1015.7.9
Thread
M10
Min Grip
3.8
Max
7.9
Hole
13.50
HD
15.11
HH
0.55
L
20.45
D
13.46
$1.05 (GST Inc.)
$0.95 (GST Ex.)
Card No.
1880.18
PartNo
AKS4.616.150
Thread
3/8" UNC
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$0.68 (GST Inc.)
$0.62 (GST Ex.)

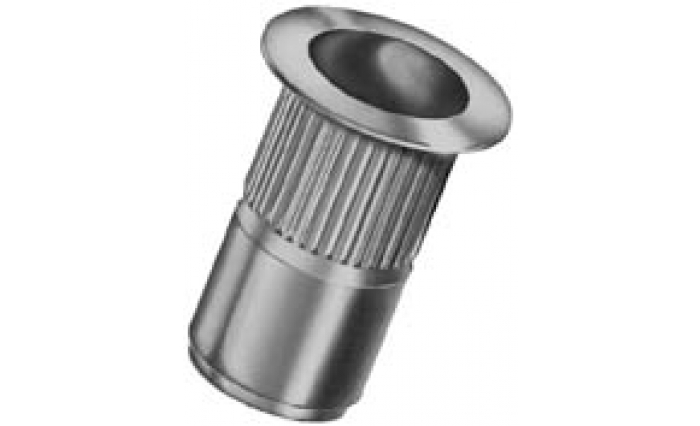

AVK AL Series Threaded Insert
AVK AL Series Threaded Insert

AVK AL Series Threaded Insert

AK Series Steel Thread Insert

Flanged Head

Zinc Dichormate Steel

$0.34 - $1.67 (GST Inc) $0.31 - $1.52 (GST Ex) See Details Select Size Options

Sizing Options

Card No.
PartNo
Thread
Min Grip
Max
Hole
HD
HH
L
D
GST Inc.
GST Ex.
Card No.
1886.14
PartNo
ALS4.420.165
Thread
1/4" UNC
Min Grip
4.2
Max
6.6
Hole
10.00
HD
11.56
HH
0.55
L
17.27
D
9.91
$0.34 (GST Inc.)
$0.31 (GST Ex.)
Card No.
1886.52
PartNo
ALS4.610.4.2
Thread
M6
Min Grip
0.7
Max
4.2
Hole
10.00
HD
12.70
HH
0.76
L
14.73
D
9.91
$0.34 (GST Inc.)
$0.31 (GST Ex.)
Card No.
1887.52
PartNo
ALS4.610.6.6
Thread
M6
Min Grip
4.2
Max
6.6
Hole
10.00
HD
12.7
HH
0.76
L
17.27
D
9.91
$0.42 (GST Inc.)
$0.38 (GST Ex.)
Card No.
1889.40
PartNo
AVK2000
Thread
M6
Min Grip
6
Max
9.5
Hole
10.00
HD
12.7
HH
0.76
L
33
D
9.91
$1.67 (GST Inc.)
$1.52 (GST Ex.)
Card No.
1886.53
PartNo
ALS4.8125.3.8
Thread
M8
Min Grip
0.7
Max
3.8
Hole
13.50
HD
17.40
HH
0.89
L
17.53
D
13.46
$0.48 (GST Inc.)
$0.44 (GST Ex.)
Card No.
1887.53
PartNo
ALS4.8125.7.9
Thread
M8
Min Grip
3.8
Max
7.9
Hole
13.50
HD
17.40
HH
0.89
L
20.45
D
13.46
$0.60 (GST Inc.)
$0.55 (GST Ex.)
Card No.
1886.54
PartNo
ALS4.1015.3.8
Thread
M10
Min Grip
0.7
Max
3.8
Hole
13.50
HD
17.40
HH
0.89
L
17.53
D
13.46
$0.68 (GST Inc.)
$0.62 (GST Ex.)
Card No.
1887.54
PartNo
ALS4.1015.7.9
Thread
M10
Min Grip
3.8
Max
7.9
Hole
13.50
HD
17.40
HH
0.89
L
20.45
D
13.46
$0.85 (GST Inc.)
$0.77 (GST Ex.)
Card No.
1886.55
PartNo
ALS4.12175.5.1
Thread
M12
Min Grip
1.6
Max
5.1
Hole
17.45
HD
21.97
HH
1.19
L
29.21
D
17.40
$1.23 (GST Inc.)
$1.12 (GST Ex.)
Card No.
1886.57
PartNo
ALS4.121275.12.7
Thread
M12
Min Grip
8.9
Max
12.7
Hole
17.45
HD
21.97
HH
1.19
L
36.83
D
17.40
$1.56 (GST Inc.)
$1.42 (GST Ex.)
