Rivet Installation Kits, Hand Tools and More
Card Number. 1602.50
Card Number. 1602.51
HP2 Marson Hand Riveter installs 3/32" 1/8" 5/32" and 3/16"
Card Number. 1602.75
Hand Tool for rivets up to 3/16" Ø

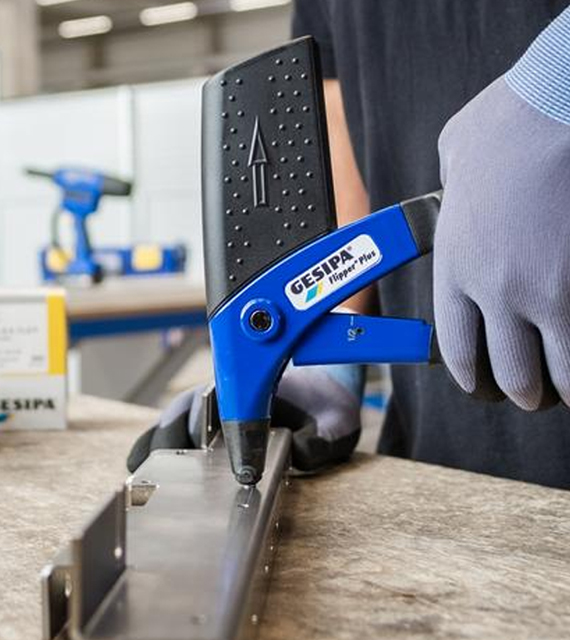

The Gesipa® Flipper® is a lightweight and low effort hand riveting tool, supplied with a spent mandrel container which can be slipped onto the tool body and is easy to empty. It features a spring loaded jaw mechanism for positive and automatic spent mandrel release. By using more strokes, the physical force required to set rivets is significantly reduced.
- Weight: 750g
- Length 221mm
- Stroke (Total): 16.2mm
- Setting Capacity 3/32", 1/8", 5/32", 3/16"
Card Number. 1645.00
Lazy Tong Rivet Tool up to 1/4" Ø
The FAR K5 is a heavy duty lazy tong riveting tool, in robust aluminium and steel construction. The strong steel linkage system is designed for improved mechanical advantage. This tool is supplied with 5 nosepieces.
- Length (closed): 300mm
- Length (open): 830mm
- Stroke (max): 14mm
- Nosepieces: 3/32", 1/8", 5/32", 3/16", 1/4"
Card Number. 1602.70
Long Arm Lever Rivet Tool up to 5/16" Ø
The FAR K25 is a heavy duty lever riveting tool with ergonomic grips designed for comfortable and safe operation. It features an integrated mandrel collector. Its lever and gear design reduces physical force required to set rivets. This tool is ideal for on-site work and low volume installations for larger diameter rivets.
- Length: 420mm
- Stroke: 10mm
- Nosepieces: 1/8", 5/32", 3/16", 1/4", 5/16"
Card Number. 1602.76
Lever Tool for Rivets up to 6.4mm Ø
The Gesipa® HN2-BT is a heavy duty lever riveting tool with ergonomic grips designed for comfortable and safe operation. It features an integrated mandrel collector which swivels for easy removal. Its lever and gear design significantly reduces the physical force required to set rivets. The HN2-BT is well configured with BT nosepieces & jaws for installation of Bulb-Tite® rivets up to 5/16" Ø
- Length: 577mm
- Stroke: 10mm
- Nosepieces: 1/8", 5/32", 3/16", 1/4", (5/16" Bulb-Tite®)
Card Number. 1641.01
Air Riveting Tool up to 3/16" Ø
The FAR RAC83 is a solid and reliable air only riveting tool with simple double acting pneumatic actuation. Designed for industrial or manufacturing applications, it is optimal for installations of standard aluminium rivets. Made in Italy, this tool has 12 months warranty.
- Weight: 1.5Kg
- Length: 220mm
- Operating Pressure: 6 bar
- Pulling Force: 5,372N
- Stroke: 10mm
- Nosepieces: 3/32", 1/8", 5/32", 3/16"
ENQUIRE NOW https://www.ovesco.com.au/contact-us/
Card Number. 1640.02
Card Number. 1640.03
Card Number. 1602.80
Battery Rivet Tool up to 3/16" Ø
The Gesipa® Accubird® is a professional standard battery rivet tool developed and produced in Germany. Designed to set up to 4.8mm stainless steel rivets this tool provides cable free operation for on site installation or production work. Supplied in a steel carry case this tool is electronically controlled and is extremely reliable due to it’s low energy transmission via a highly efficient ball screw drive.
- Weight (with battery): 2.2Kg
- Length: 265mm
- Operating Voltage: 14.4V DC
- Pulling Force: 8,500N
- Stroke: 20mm
Heavy duty and lightweight riveting tools for all industries
Installing rivets requires patience and precision
It takes patience and precision to install rivets securely. While the patience will have to come from you, ovesco’s stellar range of rivet installation tools offers unparalleled precision, reliability, durability and ease of use.
We offer a range of hand-powered, air-powered and battery-powered riveting tools. Each is made of high-quality materials and features slim yet ergonomic designs for easy use even in constricted spaces. For trickier jobs, you’ll find our extendable Lazy Tong rivet tool is quite the lifesaver.
Browse our range of riveting tools to explore their specifications, and get in touch to discuss which tools would be best for your project.
Australia’s leading supplier of hardware
We have over 4000 high quality product lines available in hundreds of different categories.
We have over 20 years of experience servicing businesses in industrial and transport.
How we meet customer expectations
Our staff are highly experienced tradespeople from an array of fields and offer reliable advice for all solutions in the industrial and transport sectors. Contact us by phone or send through an email enquiry and one of our qualified staff will contact you back to assist with the right solution.
How to use a hand rivet gun?
Using a hand rivet gun is a straightforward process. Start by selecting the appropriate size and type of rivet for your project. Insert the rivet into the gun's nosepiece, ensuring it fits snugly. Place the rivet's shank into the pre-drilled hole in the materials you're joining. Squeeze the handles of the rivet gun together firmly to compress the rivet. Be sure to maintain even pressure while compressing the rivet. Once set, release the handles and remove any excess shank material if necessary.
What is a hand riveter?
A hand riveter is a handheld tool designed for setting rivets. It consists of a pair of handles that, when squeezed together, compress a rivet's shank, creating a tight and secure fastening. Hand riveters are commonly used in construction, automotive repair, and various DIY projects to join or fasten materials together.
How are rivets installed?
First, a hole is drilled through the materials you want to join. The size of the hole typically matches the diameter of the rivet's shaft. Next, the rivet is inserted into the hole from one side. On the opposite side, a tool like a rivet gun is used to hold the rivet in place and apply pressure to the unheaded end. As you squeeze the rivet gun, it creates a new head on the other side of the material and securely locks them together.
