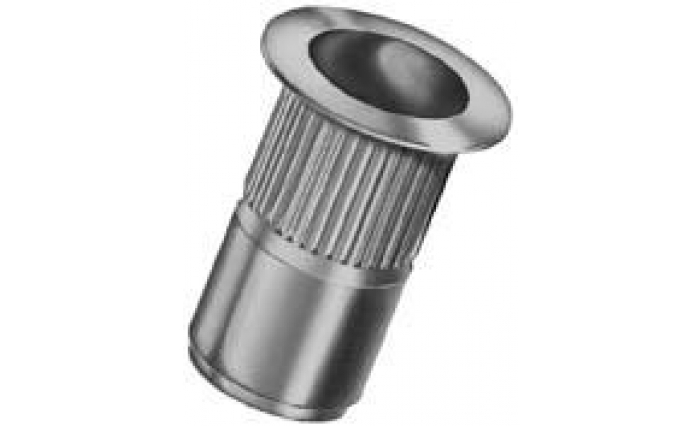

AVK AL Series Threaded Insert

AL Series Steel Thread Insert

Flanged Head

Zinc Dichormate Steel

$0.35 - $1.75 (GST Inc) $0.32 - $1.59 (GST Ex) Select Size Options Ask a Question

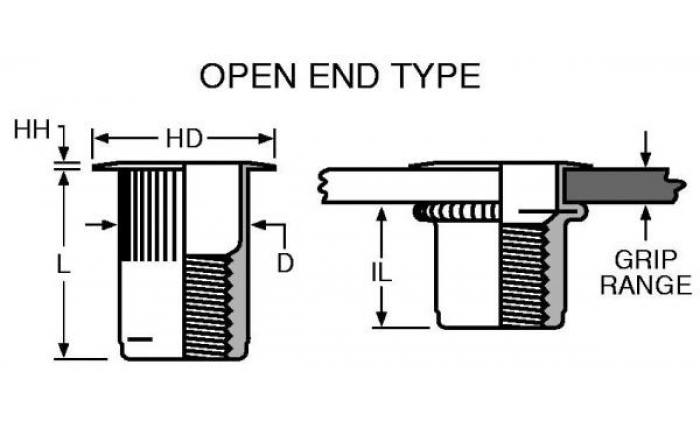

Sizing Options

Card No.
Part No.
Thread
Min Grip
Max
Hole
HD
HH
L
D
GST Inc.
GST Ex.
Card No.
1886.14
Part No.
ALS4.420.165
Thread
1/4" UNC
Min Grip
4.2
Max
6.6
Hole
10.00
HD
11.56
HH
0.55
L
17.27
D
9.91
(GST Inc.)
(GST Ex.)
Card No.
1886.52
Part No.
ALS4.610.4.2
Thread
M6
Min Grip
0.7
Max
4.2
Hole
10.00
HD
12.70
HH
0.76
L
14.73
D
9.91
$0.60 (GST Inc.)
$0.55 (GST Ex.)
Card No.
1887.52
Part No.
ALS4.610.6.6
Thread
M6
Min Grip
4.2
Max
6.6
Hole
10.00
HD
12.7
HH
0.76
L
17.27
D
9.91
$0.75 (GST Inc.)
$0.68 (GST Ex.)
Card No.
1889.40
Part No.
AVK2000
Thread
M6
Min Grip
6
Max
9.5
Hole
10.00
HD
12.7
HH
0.76
L
33
D
9.91
$1.75 (GST Inc.)
$1.59 (GST Ex.)
Card No.
1886.53
Part No.
ALS4.8125.3.8
Thread
M8
Min Grip
0.7
Max
3.8
Hole
13.50
HD
17.40
HH
0.89
L
17.53
D
13.46
$0.97 (GST Inc.)
$0.88 (GST Ex.)
Card No.
1887.53
Part No.
ALS4.8125.7.9
Thread
M8
Min Grip
3.8
Max
7.9
Hole
13.50
HD
17.40
HH
0.89
L
20.45
D
13.46
$0.60 (GST Inc.)
$0.55 (GST Ex.)
Card No.
1886.54
Part No.
ALS4.1015.3.8
Thread
M10
Min Grip
0.7
Max
3.8
Hole
13.50
HD
17.40
HH
0.89
L
17.53
D
13.46
$0.70 (GST Inc.)
$0.64 (GST Ex.)
Card No.
1887.54
Part No.
ALS4.1015.7.9
Thread
M10
Min Grip
3.8
Max
7.9
Hole
13.50
HD
17.40
HH
0.89
L
20.45
D
13.46
$0.90 (GST Inc.)
$0.82 (GST Ex.)
Card No.
1886.55
Part No.
ALS4.12175.5.1
Thread
M12
Min Grip
1.6
Max
5.1
Hole
17.45
HD
21.97
HH
1.19
L
29.21
D
17.40
$1.25 (GST Inc.)
$1.14 (GST Ex.)
Card No.
1886.57
Part No.
ALS4.121275.12.7
Thread
M12
Min Grip
8.9
Max
12.7
Hole
17.45
HD
21.97
HH
1.19
L
36.83
D
17.40
$1.65 (GST Inc.)
$1.50 (GST Ex.)
