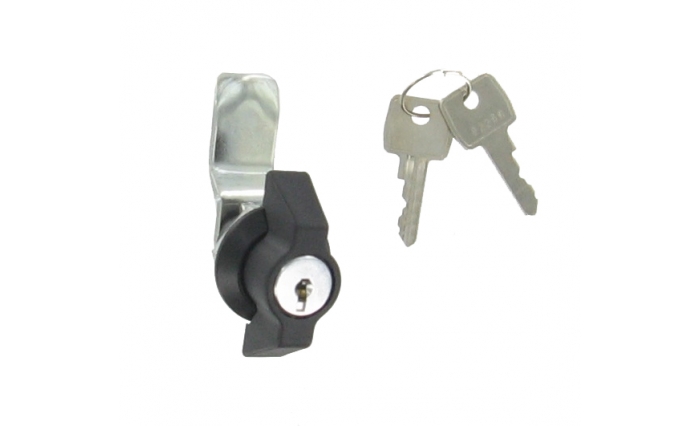

1/4 Turn Black Wingknob

1/4 Turn Black Wingknob

Card No. 1082.18

Quarter Turn Locks are commonly used where simple 1 point locking systems are required. This lock is key lockable, can operate through an angle of 90° (quarter turn), and can be installed into panels with a maximum thickness of 6mm.

This lock suits applications where a slide compression fit is required (i.e. where lock is abutting pinchweld or foam tape)

Features

  • Black Plastic Wing Knob
  • Black Powder Coated Steel Face
  • Zinc Plated Steel Tongue
  • Key Lockable (2 Keys Included)
  • Wing Knob Drive
  • 26mm Maximum Grip
  • 6mm Maximum Panel Thickness
  • 1 Way Locking

For alternative cam lock options, ovesco also stocks the Southco E5 Cam Latch range

This lock is commonly used for electrical switchboards, HVAC, medical and general cabinets, tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes and camper trailers.

$59.65 (GST Inc) $54.23 (GST Ex)
