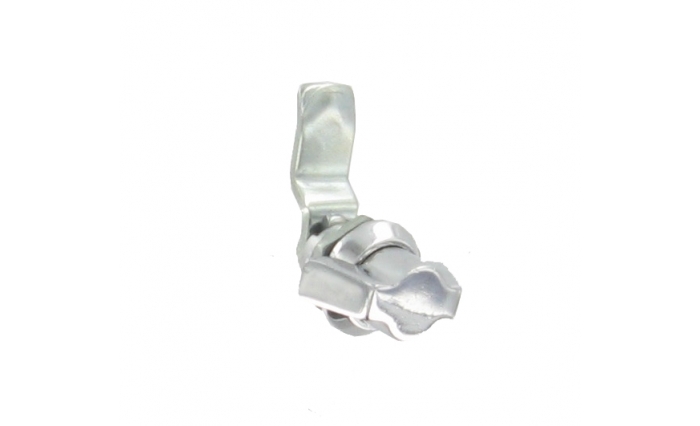

1/4 Turn Wingknob Chrome

1/4 Turn Wingknob Chrome

Card No. 1082.16

Quarter Turn Locks are commonly used where simple 1 point locking systems are required. This lock is non-locking, can operate through an angle of 90° (quarter turn), and can be installed into panels with a maximum thickness of 6mm.

This lock is IP 65 rated, meaning the lock is completely protected against dust ingress, and is protected from water ingress for loads up to a low pressure water jet.

This lock suits applications where a slide compression fit is required (i.e. where lock is abutting pinchweld or foam tape)

Features

  • Die Cast Chrome Plated Face
  • Zinc Plated Steel Tongue
  • Non Locking
  • Wing Knob Drive
  • 26mm Maximum Grip
  • 6mm Maximum Panel Thickness
  • 1 Way Locking

For alternative cam lock options, ovesco also stocks the Southco E5 Cam Latch range

This lock is commonly used in areas that are already under lock and key, such as medical and general cabinets, and tool boxes. It is also used in canopies, safety equipment storage, mining and marine applications, motor homes and camper trailers.

$24.90 (GST Inc) $22.64 (GST Ex)
