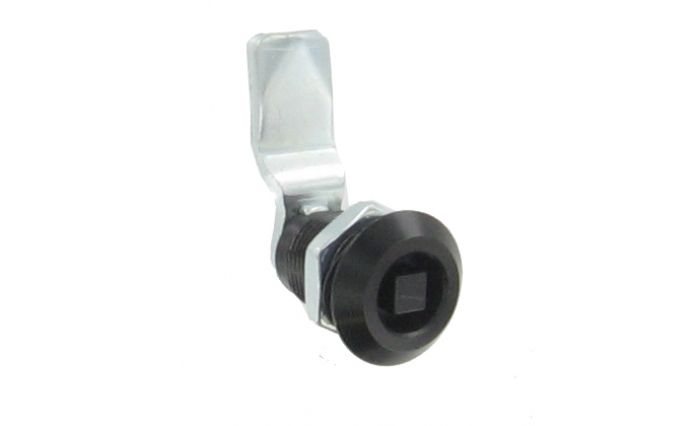

Dirak 1/4 Turn 8mm SQ Drive 38

Dirak 1/4 Turn 8mm SQ Drive 38

Card No. 1082.10

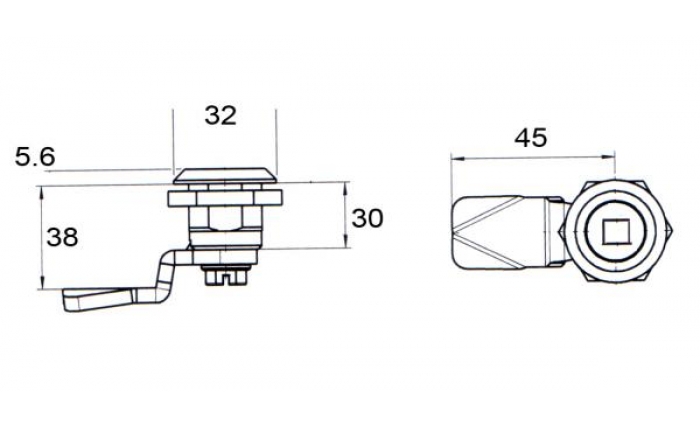

Quarter Turn Locks are commonly used where simple 1 point locking systems are required. This lock is lockable using an 8mm square drive key (1081.52), can operate through an angle of 90° (quarter turn), and can be installed into panels with a maximum thickness of 20mm.

This lock suits applications where a slide compression fit is required (i.e. where lock is abutting pinchweld or foam tape)

Features

  • Black Powder Coated Steel Face
  • Zinc Plated Steel Tongue
  • 8mm Square Drive
  • Key Sold Seperately (1081.52)
  • 38mm Maximum Grip
  • 20mm Maximum Panel Thickness
  • 1 Way Locking

For alternative cam lock options, ovesco also stocks the Southco E5 Cam Latch range

This lock is commonly used for electrical switchboards, HVAC, medical and general cabinets, tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes and camper trailers.

$38.75 (GST Inc) $35.23 (GST Ex)
