Square Shaft Lock Pin 10mm

Square Shaft Lock Pin 10mm

Card No. 813.28

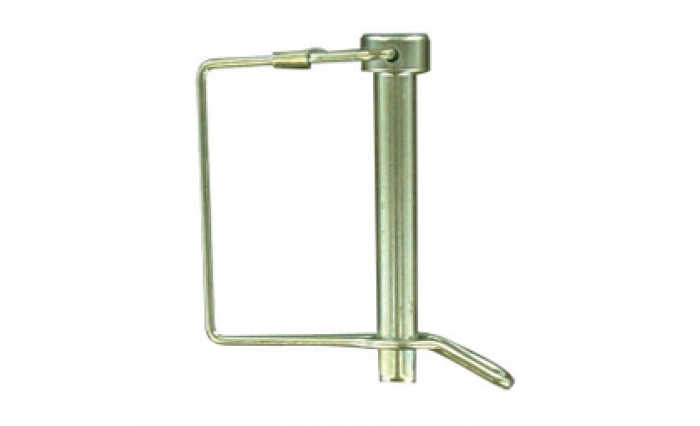

Square Shaft Lock Pins, also known as Shaft Locking Clips and Retaining D Clips, are used to secure the ends of shafts where there is a risk of the clip falling off or vibrating loose.

The Shaft Lock Pin is opened by pulling the wired section from the shaft, and is secured when the straight section of the Pin is inserted into a pre-drilled hole in a shaft, then secured using the wired section. This lock pin has an ergonomically designed wired section that acts as a finger pull type mechanism for ease or operation.

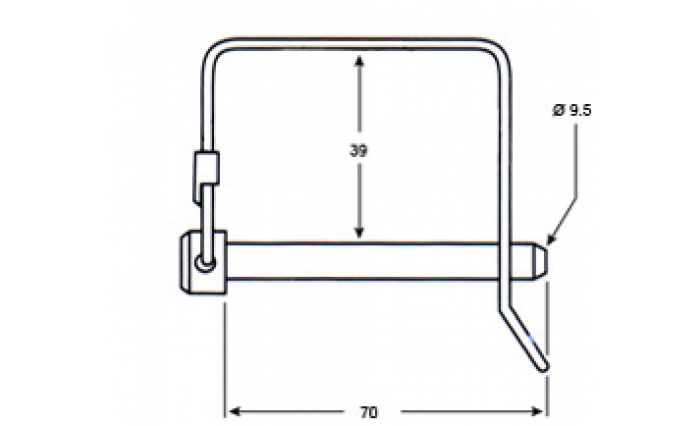

This Shaft Lock Pin is made from zinc plated steel, has a pin thickness of 10mm (3/8"), suits a maximum shaft thickness of 56mm and has a width of 40mm.

Features

  • Zinc Plated Steel Finish
  • 10mm (3/8") Pin Diameter
  • Maximum 56mm Shaft Diameter

Commonly used in applications for trucks, hitch pins, towing and haulage, motor homes, utes, trailers, tray backs, camper trailers and service vehicles. Also used for mining, vehicle body manufacture, transport, marine, government and defence vehicles.

$17.90 (GST Inc) $16.27 (GST Ex)
Ask a Question
